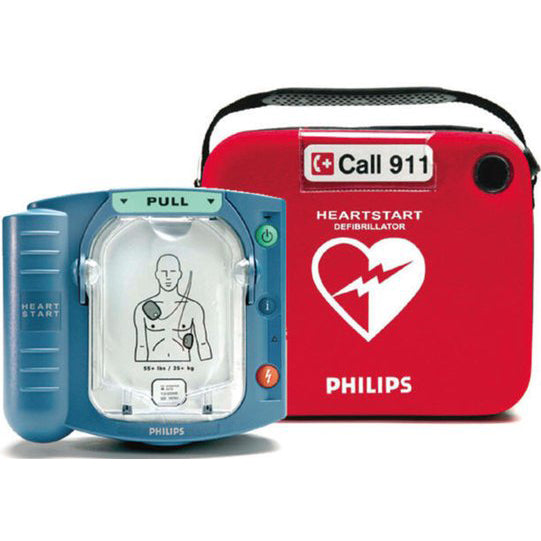

Empower ordinary people to save a life during an extraordinary crisis with the official Philips HeartStart OnSite HS1 AED with Standard Carrying Case (M5066A-C01-ABA). As the public-access automated external defibrillator model available without a prescription, this medical-grade unit is engineered explicitly for workplaces, corporate offices, public venues, and residential settings. By removing technical complexity and operational friction, it guides a rescuer through every stage of sudden cardiac arrest (SCA) intervention with the calm presence of a professional coach.
The core technology relies on a smart, interactive system. Once activated, clear natural voice commands and illuminated visual icons lead you seamlessly through pad placement, rhythm analysis, and chest compression pacing with a built-in metronome. Utilizing the advanced SMART Analysis algorithm, the unit continuously evaluates the patient’s cardiac activity and will only permit a shock if a treatable condition is verified, completely shielding the user from accidental or improper deployment. Arriving in a pre-connected layout with an 8-year device warranty, this portable lifesaver is ready to work immediately out of the shipping box.
| Manufacturer Designation | M5066A-C01-ABA (English Language Interface) |
| Regulatory Classification | Health Canada Class 3 Medical Device / Over-The-Counter Public Access AED |
| Waveform Delivery Matrix | SMART Biphasic Truncated Exponential (Self-adjusts output parameters based on specific patient impedance) |
| Energy Output Profile | Adult: Nominal 150 Joules into a 50-ohm load | Pediatric: Nominal 50 Joules (via optional infant/child cartridge) |
| Physical Dimensions | 7 cm H x 19 cm D x 21 cm W (2.8" x 7.4" x 8.3") | Weight: 1.5 kg (3.3 lbs) with battery and pads loaded |
