1 Rigid Plastic Protective Cartridge Base: Specialized housing equipped with an integrated pediatric pink pull-handle and an automatic digital handshake pin interface.

1 Set of Connected Infant/Child Electrodes: A paired set of pre-connected clinical pads layered with a high-conductivity, wet adhesive gel core.

Protective Pull-Seal Cover: A factory-sealed moisture film that keeps the conductive gel fully hydrated until deployment during an emergency.

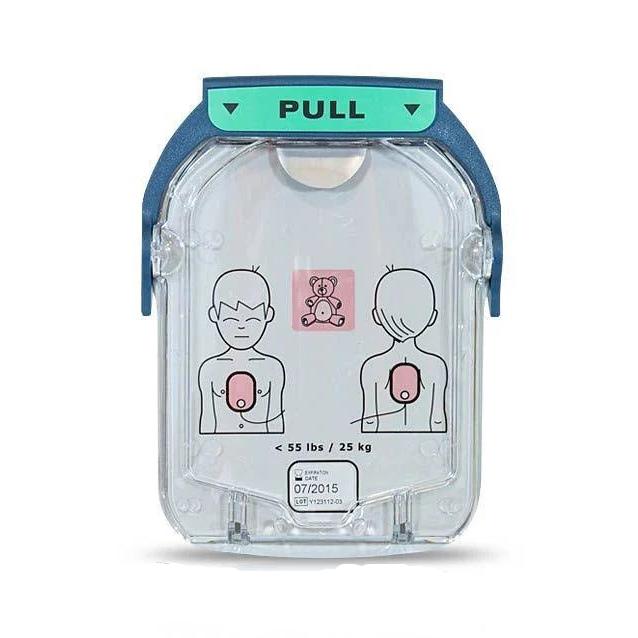

Illustrated Quick-Reference Placement Guide: Visual diagrams printed directly onto the outer cartridge casing showing alternative front-and-back positioning rules for infants and toddlers.

Official Manufacturer Installation Instructions: A comprehensive Philips Healthcare instructional guide detailing storage protocols, device clipping, and expiration verification.

Q: What is the exact difference between part numbers M5072A and M5074A?

A: There is no physical or clinical difference between the pads themselves. M5072A is the official global clinical catalog order code for the complete cartridge system, whereas M5074A is often utilized by Philips' internal manufacturing tracking systems and printed on the exterior boxing. They are completely interchangeable.

Q: Why does the M5072A cartridge cost more than the adult M5071A variant?

A: The pediatric cartridge contains specialized, built-in electrical attenuation circuitry. This internal hardware interacts dynamically with the AED's motherboard to instantly force the high-voltage system to suppress its standard adult electrical payload down to a safer child dosage.

Q: Can these pediatric pads be used on an adult patient if no other options are available?

A: No. You must never use infant/child pads on an adult patient. The built-in circuitry will permanently suppress the electrical payload to 50 Joules, which is mathematically insufficient to defibrillate or terminate sudden cardiac arrest in an adult body.

Q: How long do these infant/child pads last while remaining in standby mode?

A: The cartridge carries a 24-month (2-year) shelf life from its original date of assembly. The exact expiration date is permanently stamped on the front face of the plastic casing. Once that date passes, the wet conductive adhesive gel can dry out, rendering the pads unable to analyze rhythms or deliver current.

Q: Where exactly should these pads be placed on a baby's body?

A: Unlike adult pads that utilize an anterior-lateral (chest/side) placement, infant/child electrodes require an anterior-posterior (front/back) configuration. Place one pad firmly in the exact center of the child's bare chest, and place the second pad in the exact center of the child's bare back.
